Overview
Make
Air Tow
Model
3D-12
-
Year
New
-
Condition
New
Hours
-
Stock No.
-
Lift Height
Load Capacity
10,000 lbs
Working Height
Lift Capacity
Deck Length
Horizontal Reach
Width
Type
Drop Deck Trailers
Deck Width
Deck Height
Description
The Multi-Purpose, Two-In-One Drop-Deck & Dump Trailer:! The widely popular 3D (Drop-Deck & Dump) model is the world’s only trailer of its kind – offering the dual-purpose flexibility of being both a drop-deck and dump trailer all in one heavy-duty vehicle. With a full 149″ internal deck length and 74″ deck width combined with a 10,000 lb equipment capacity (8,000 dump capacity), you can fit most any piece of equipment to handle just about every job, large or small. The Airtow 3D takes up half the yard space without the cost of the maintenance issues of two pieces of equipment or any other dump trailer combinations!
For Sale in Canada!
*All pricing is subject to change based on tariffs and availability

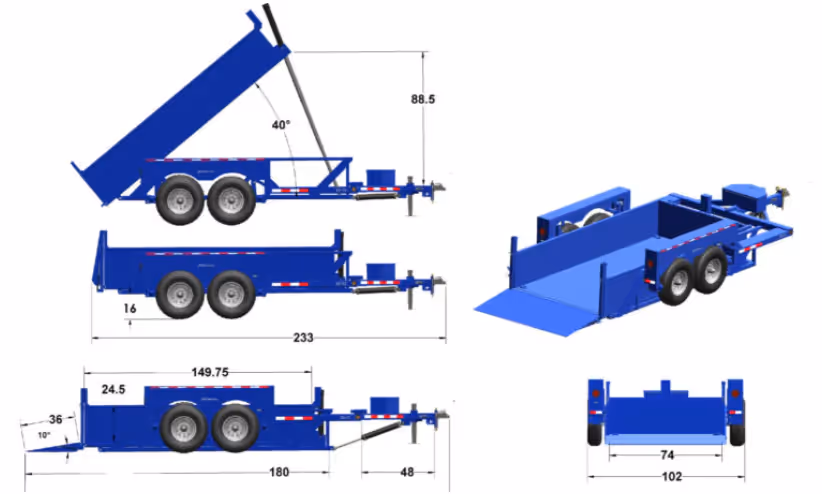

Specifications
GVWR: 15,140 lbs.
Capacity: 10,000 lbs. Towing/ 8,000 lbs. Dumping
Weight (varies w/ opt.): 5,140 lbs.

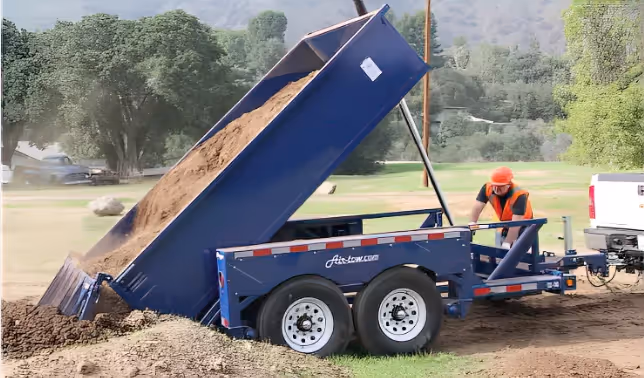

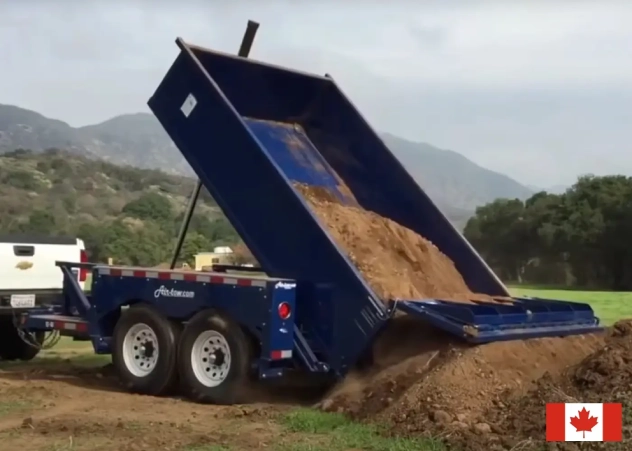

Full Dump Angle: 40 degrees
Bed Width Inside: 6’2″ (74″)
Bed Length Inside: 12’4″ (149″)
Bed Depth Inside: 24″
Overall Width: 101″
Deck Material: Diamond Steel Plate
Axles: Tandem
Wheels/Tires: 16″ – 12 Ply
Brakes (electric-std.): Dual Electric
Suspension: Rubber

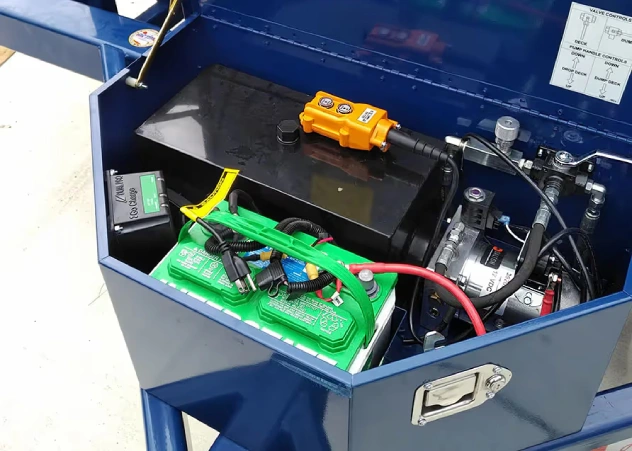

Lift Mechanism: Dual Hydraulic

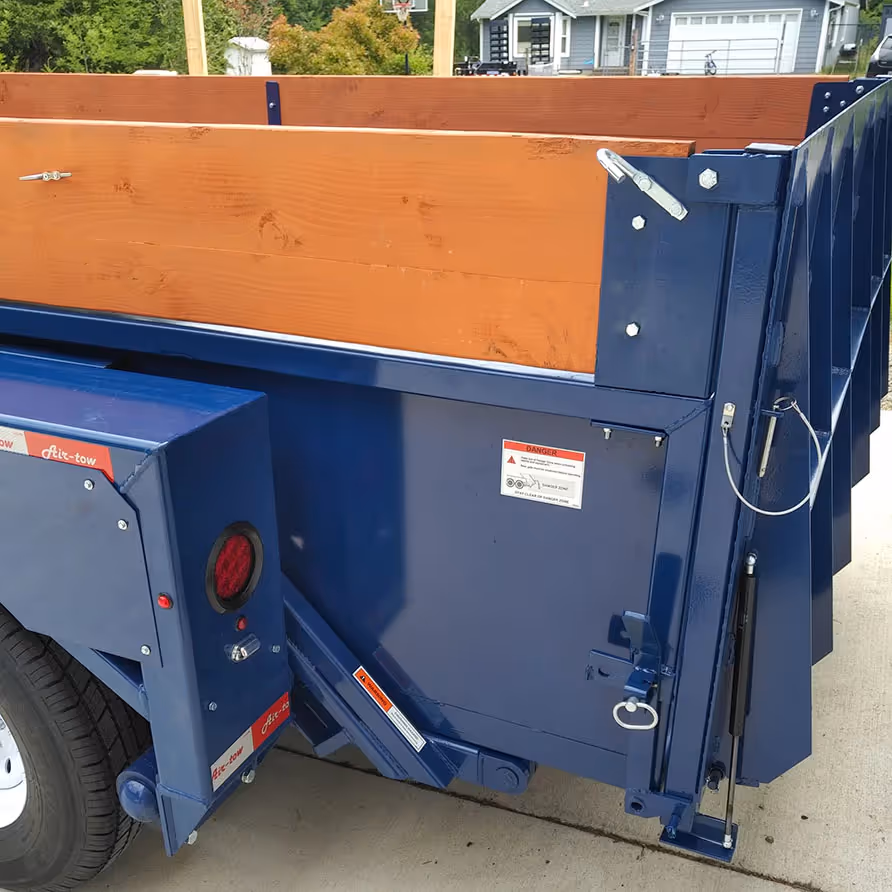

Tailgate: Dual Acting
Coupler: 2 5/16″ Ball
Color: Royal Blue
Features

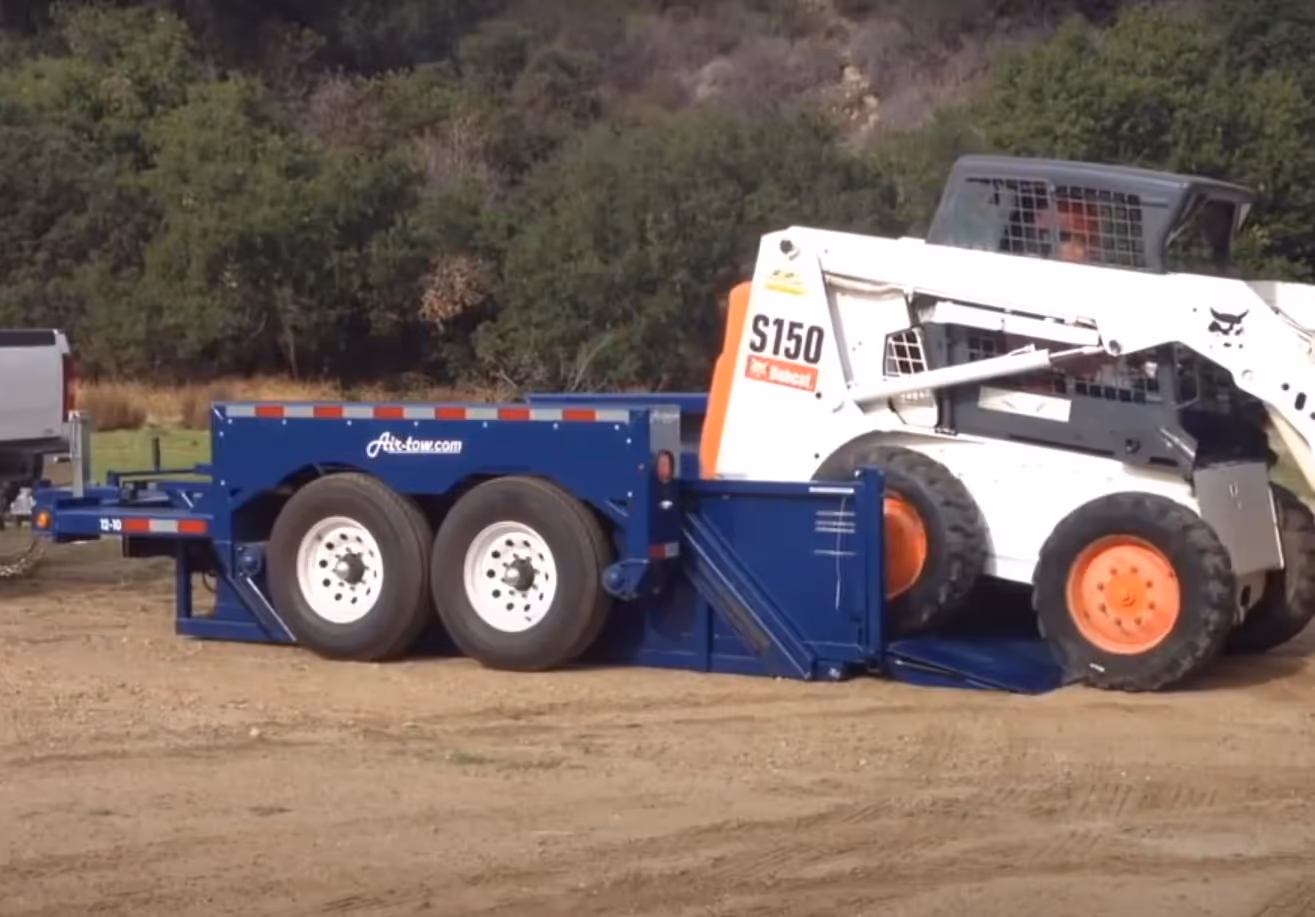

Ground-Level Loading
Non-tilting Deck
Extra-Wide Deck
Heavy-Duty Diamond Deck
Fenderless
Adjustable Coupler
Adjustable Chain
Rubber Suspension
“Air-Float” Swingarm Axles
Remote Control
Bright LED Lights
Durable Powder Coat Paint
4 Heavy-Duty D-Rings
16” F-Rated Wheels

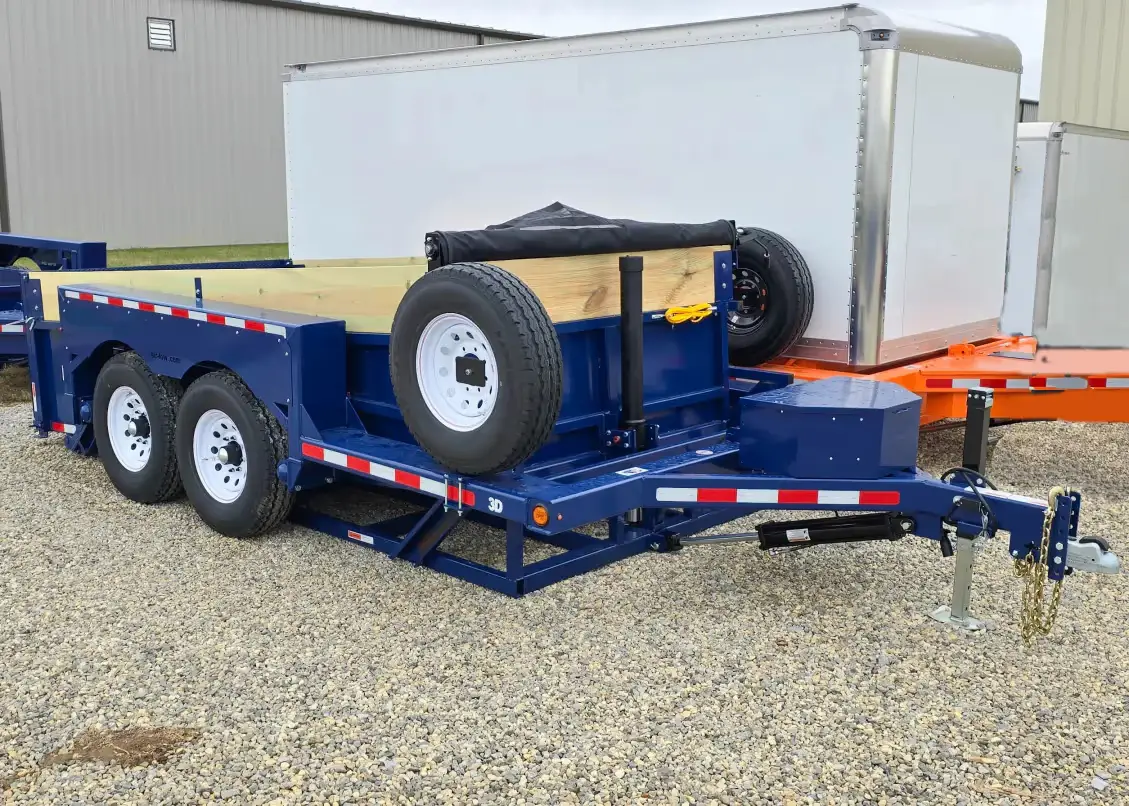

Spare Tire Bracket
6AMP Trickle Charger
NEW Air-tow 3D-12 Level Loading Dump Trailer
