Overview
Make
Air Tow
Model
E-16 XL
-
Year
New
-
Condition
New
Hours
-
Stock No.
-
Lift Height
Load Capacity
10,000 lbs
Working Height
Lift Capacity
Deck Length
15.9 ft
Horizontal Reach
Width
Type
Drop Deck Trailers
Deck Width
6.3 ft
Deck Height
Description

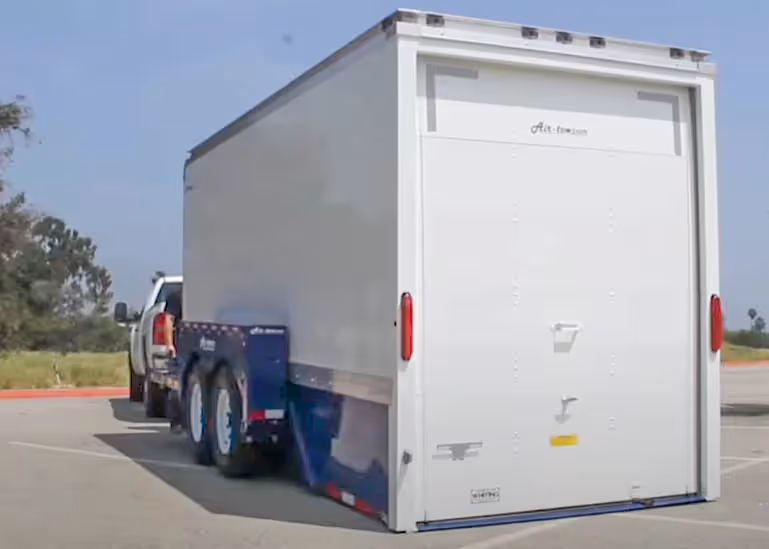

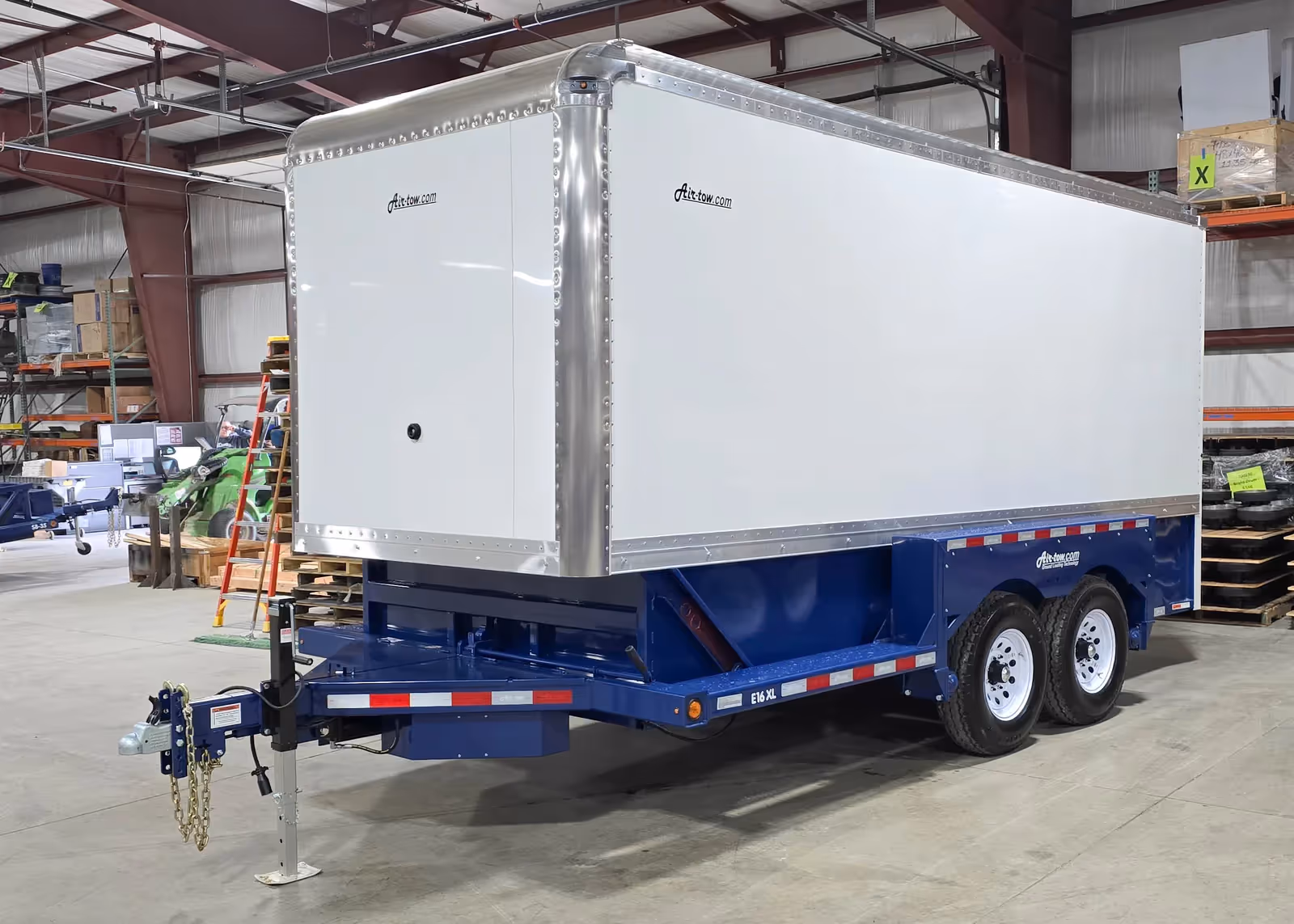

The E-16 XL is the largest enclosed trailer in the Air-tow line and comes preloaded with many features. It has 15’9″ of usable deck space and can carry up to 10,000 lbs. The front-end is extended beyond the regular deck that allows for a 15″ shelf and an extra 36 cubic ft. to work with. The aerodynamic design of the front-end not only adds space, but reduces air resistance and increases gas mileage. The back-end is also extended 16″ to round out the total storage space at 838 cubic ft. Other standard features that set the E-16 XL apart from the regular E-16 include: a self-locking rollup door, 2 LED interior lights and a 3/8″ plywood interior lining. This trailer is also very customizable with options for E-tracks, X-tracks, nose cone and many more accessories.
Its aerodynamic front-end enhances space and fuel efficiency, ideal for extensive hauling needs. For Sale in Canada!
*All pricing is subject to change based on tariffs and availability
Specifications
GVWR: 15,940 lbs.
Capacity: 10,000 lbs.
Weight (varies w/ opt.): 5,940 lbs.
Inside Deck Width: 6’3″ (75″)(Door Opening 71″)
Deck Material: Diamond Steel Plate Inside
Deck Length: 15’9″
Door Opening: 92″ H X 71″ W Roll Up
Shelf Storage Space: 15″
Overall Width: 102″
Axles: Tandem
Wheels/Tires: 16″ – 12 Ply
Brakes(electric-std.): Electric
Suspension (rubber/air): Rubber
Lift Mechanism: Hydraulic
Coupler: 2 5/16″ Ball
Color: Royal Blue
Features
Ground-Level Loading
Non-tilting Deck
Heavy Duty Enclosure
Heavy-Duty Diamond Deck
Fenderless
Roll-Up Doors
Storage Shelf
Access Door
Rubber Suspension
Swingarm Axles
Interior Lining
Remote Control
Bright LED Lights
Durable Powder Coat Paint
8 Heavy-duty D-Rings
16” Wheels
Spare Tire Bracket
6AMP Trickle Charger
E-Tracks

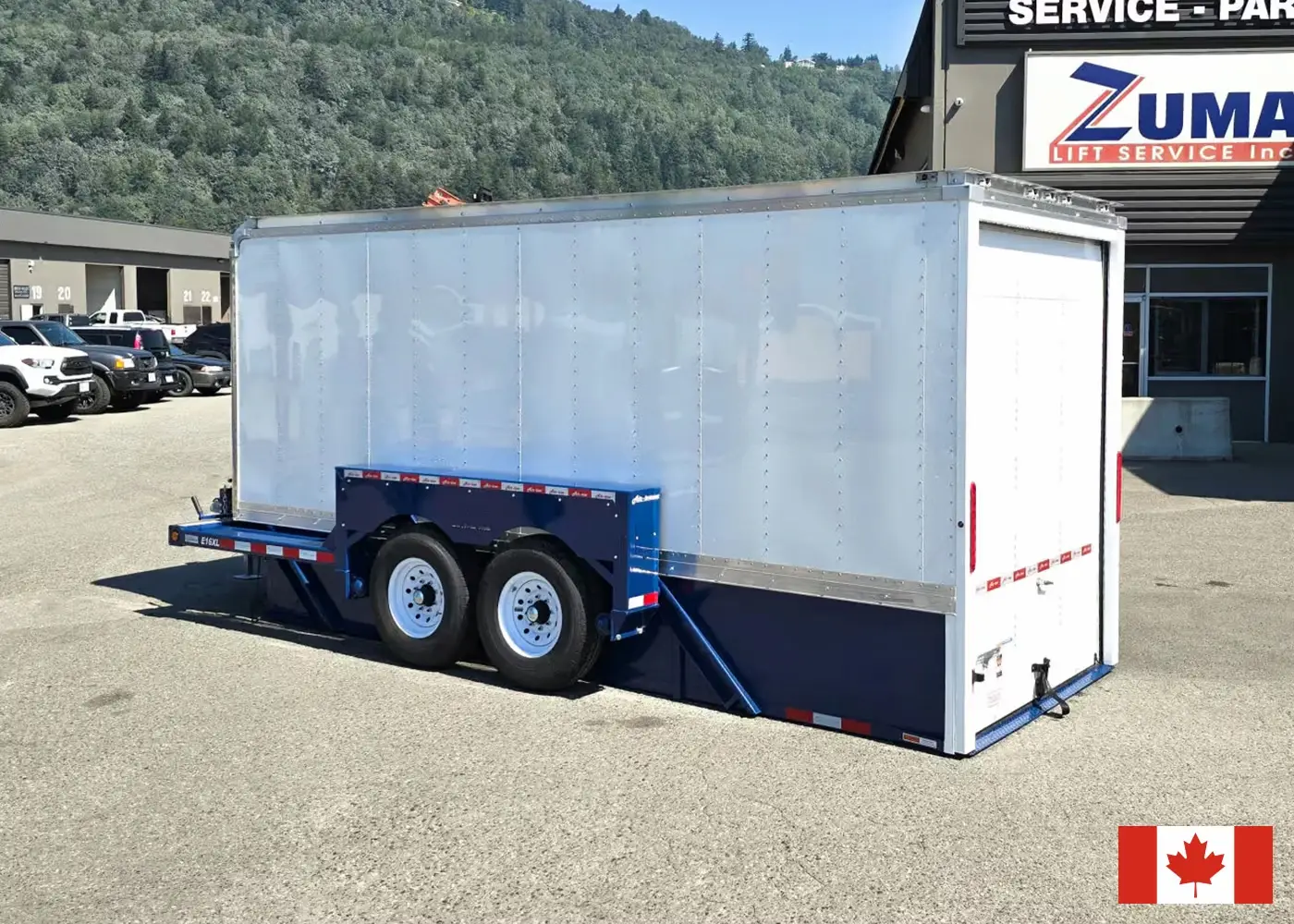

NEW Air-tow E-16 XL Enclosed Drop Deck Trailer
